Wellpappen Herstellungs/Verarbeitungsmaschinen
corrugated board production- and converting machines

DY MACHINERY

Sheet size 600 mm - 2400 mm
max. pritnting size 820 x 2400 mm
max board thickness 10 mm
standard slotting knifs thickness 8 mm

more details on request

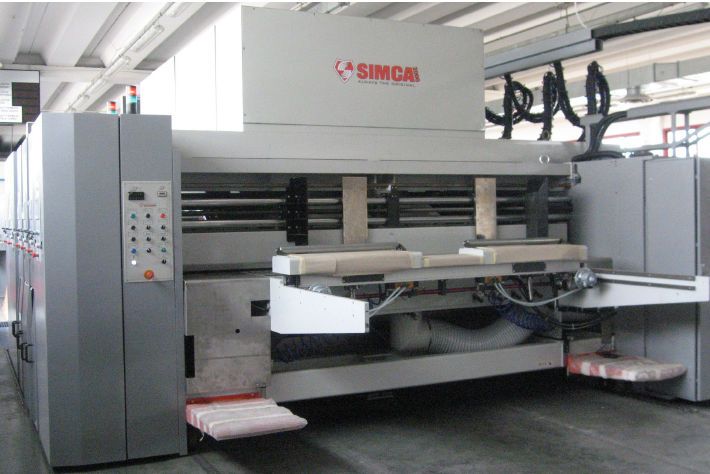

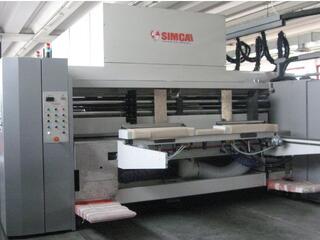

SIMCA

max. sheet width 2.200 mm
slot depth max. 300 mm
sheet format
length 350 - 1.150 mm

2 print units

print - punch - gluing

more details onn request

DY MACHINERY

max. sheet feed 1200 x 2750 mm
min. sheet feed 320 x 600 (800) mm

more details onn request

PIEMONTE

Bogengröße/sheet size max. 3300 mm x 1500 mm
                                  min.   880 mm x   345 mm

more details on request

BHS

more details on request

CURIONI

4 color
drive for Rotary Die Cutter

Extend-o-feed lead-edge feeder
rotary motion feeder with variable stroke
Max: sheet width mm. 2360
Max. sheet length mm. 1550
Max. sheet length by skip-feed mm. 2200 Min. sheet length mm. 440
Max. mechanical speed 10.000 strokes per hourProcessable raw material: corrugated board with thickness 2,5 mm to 12 mm. and max weight 1750 gsm.

Side jogger
Raffaello bottom printing flexo unit ( 2 roll to 2 roll Chambered Doctor Blades )
Suction Grip
Rotary die cutting unit
Synchro Drive
Grinder
Computer operated automatio Master II

more details on request

CURIONI

Drive for Flexo Folder Gluer

Extend-o-feed lead-eadge feeder
Rotary motion lead edge feeder with variable stroke
Max. sheet width 1960 mm
Max. sheet length 720 mm
Max. sheet length using skip-feed 900 mm
Min. sheet length 210 mm
Max. mechanical speed 15.000 feeds per hour
Max corrugated board calliper 8 mm – Min 2.5 mm
Max weight each corrugated sheet 1250 gsm

bottom printing flexo unit
powered slotting unit
rotary die cutting unit
folder gluer
glue extrusion unit
rotary brush
top loading Counter Ejector
Computer operated automation Master II

more details on request

GOEPFERT / GÖPFERT

Very good condition Regular maintenance carried out
1-shift operation 13,000 operating hours VPN remote maintenance
Technical data
Sheet size max. (standalone SRE only) 2500 x 9999 mm
Sheet size min. with Z-tools 360 x1000 mm
Slot width 8 mm
Slot depth max. 2 x 1000 mm
Material thickness 2.5 to 15 mm

Automatic feeder ECO without lifting table

Flexo printing unit model FPU gü

more details on request

Fossaluzza

Sheet format max. 1200 x 1700 mm
Sheet format min. 450 x 500 mm
Stacking height including pallet max. 2000 mm
Height of runway inlet 320 mm
